Wednesday, February 11, 2009

Interface of LCD with at89c51

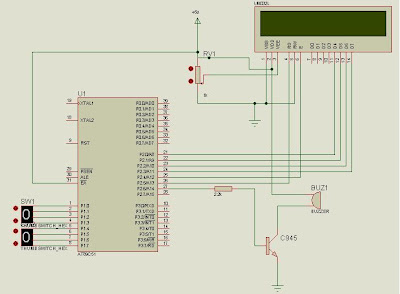

This is ciruit diagram of interfacing of LCD with microcontroller 8051 family.
This project was to measure heart beat and to display on LCD.In this post we learn how to interface a LCD with microcontroller 8051, please note that here only circuit diagram is presented in this post. However, more literature about LCD programming, different circuit diagram and example codes in assembly language and c like c51 are given in other posts in this blog. The short summary and link of other post related to LCD interfacing with microcontroller is provided below. for further information please check these.

1. LCD interface with micro-controller 8051
This is very simple project to interface a lcd with micro-controller 8051.There are two well known method to send data from microcontroller to LCD.8 bit interface and 4 bit interface, both are discussed in this post.circuit diagram for 4-bit interfacing is also provided.
URL:-   http://microcontroller51.blogspot.com/2009/02/lcd-interface-with-micro-controller.html

2. Pin configurations of LCD
Pin assignment or Pin configurations of LCD and Instructions of LCD is discussed.
URL:-   http://microcontroller51.blogspot.com/2009/07/pin-configurations-of-lcd.html

3. Interface of 4 line LCD with 8051
The inteface and control of a bigger LCD with microcontroller at89s51 is very simple. I used a LCD of four lines having 80 charachter space on each line (4*40 lcd) sucessfully. The program is written in keil c51 Uv2 and is tested with UV3 also. In this post a larger in siz LCD is interfaced with microcontroller and example C-language program ( c51 code) is also given.
URL:-  http://microcontroller51.blogspot.com/2009/07/interface-of-4-line-lcd-with-8051.html

4. Liquid crystal display LCD
We use many items containing LCDs (liquid crystal display) every day.Function Description,Registers,Busy Flag (BF),Address Counter (AC),Initializing by Internal Reset Circuit., of HD44780 are discussed.
URL:-  http://microcontroller51.blogspot.com/2009/08/liquid-crystal-display-lcd.html

5. Interfacing of Graphic LCD Module to AT89S52

The Interface of a Graphic LCD with micro-controller 8051 family.In This post the interfacing of GLCD (Graphic LCD module ) with micro-controller 8051 family is discussed. the circuit diagram for interfacing graphical LCD to microcontroller 8051 is also given.
URL:-  http://microcontroller51.blogspot.com/2009/08/interfacing-of-graphic-lcd-module-to.html

6. Alpha numeric LCD interface with micro-controller
How to control the standard Hitachi-44780 LCD using an 8051 microcontroller family.Program for LCD 4line and 40 characters in keil C51 is also given. Proteus ISIS circuit diagram for interfacing LCD to 8051 is provided in this post.
URL:-  http://microcontroller51.blogspot.com/2010/01/alpha-numeric-lcd-interface-with-micro.html

7. Development of 4 bit Counter with 8051 display on LCD
 How to write a simple C program for 80C51 (8051 family microcontroller may Atmel or Intel 8051 or any other) micro-controller, compile it using keil and displayed in decimal format on the LCD. circuit diagram and code is provided.
URL:-  http://microcontroller51.blogspot.com/2010/06/development-of-4-bit-counter-with-8051.html

8. Implementing Calculator with microcontroller 8051
keypad,LCD interfacing to develop a calculator using microcontroller 8051 is discussed. circuit diagram and program methods are given.
URL:-  http://microcontroller51.blogspot.com/2010/08/implementing-calculator-with.html

9. Assembly Language program for LCD code
In this post some routine in Assembly language are written to interface lcd with microcontroller 8051. Assembly language programming for LCD interface with microcontroller 8051 is given steps by steps.
URL:-   http://microcontroller51.blogspot.com/2010/12/assembly-language-program-for-lcd-code.html

10. How to write Data on LCD
To learn how to write something on LCD with the control from Microcontroller.Liquid Crystal Display also called as LCD is very helpful in providing user interface as well as for debugging purpose. The most common type of LCD controller is HITACHI 44780 which provides a simple interface between the controller & an LCD. circuit diagram with code in assembly language is provided.
URL:- http://microcontroller51.blogspot.com/2010/12/how-to-write-data-on-lcd.html

11.  Address Counter (AC) of LCD
The address counter (AC) assigns addresses to both DDRAM and CGRAM. When an address of an instruction is written into the IR, the address information is sent from the IR to the AC. Selection of either DDRAM or CGRAM is also determined concurrently by the instruction.
URL:-  http://microcontroller51.blogspot.com/2010/12/address-counter-ac-of-lcd.html

12. LCD interfacing with Microcontroller 8051
LCD interfacing with Microcontroller 8051 and LCD overview and its theory is given in this post.
URL:- http://microcontroller51.blogspot.com/2010/12/lcd-interfacing-with-microcontroller.html

13. Liquid Crystal Display LCD Introduction
The HD44780 dot-matrix liquid crystal display controller and driver LSI displays alphanumeric characters and symbols. It can be configured to drive a dot-matrix liquid crystal display when interfaced with a processor. A single HD44780 can display up to one 20-character line or two 20-character lines.
URL:- http://microcontroller51.blogspot.com/2011/01/liquid-crystal-display-lcd-introduction.html

14. Heart rate (beats) Meter with Microcontroller AT89c51
The heart rate meter is used to measure the heart beats per minute from finger placing between the sensor. The sensor is made of simple photo resistor and LED. The pulses from the circuit are them amplified and converted into TTL logic pulses using comparator Operational Amplifier. LCD interfacing and implementation is a good ready example in this post.

An example program for LCD, which can be used in any project with little modifications.

16. Liquid Crystal Display LCD
The HD44780 dot-matrix liquid crystal display controller and driver LSI displays alphanumeric characters and symbols. It can be configured to drive a dot-matrix liquid crystal display when interfaced with a processor. A single HD44780 can display up to one 8-character line or two 8-character lines. The HD44780 supports 8 dot character fonts and 32 5 ´ 10 dot character fonts for a total of 240 different character

17. Programming Aspects of Moving message display project using 8051
In this post we will discuss the software or program or code written for moving message display project using microcontroller 8051.In this section, we will try to answer the issues related to the timings of the signals generated. The timing of the signal relates to the order in which an instruction or command is sent to the LCD along with the appropriate signal of control signals

21 comments:
